Model: WS-CLM-Pulse

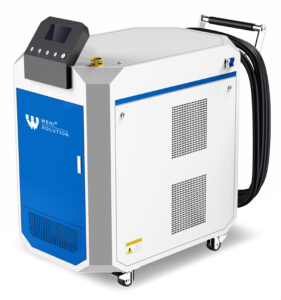

Pulse cleaning laser

The CLM- Pulse series is a device for laser surface cleaning, a product designed for tasks requiring precision and accuracy. It is perfect for woodworking and other delicate surfaces. The 200W, 300W and 500W models are easy to install, simple to use and automated, recommended for professionals.

Its use is intuitive and does not require the use of additional consumables.

Allows to remove: resin, oil, dirt, rust, tarnish, paint, etc.

Our other cleaning lasers:

  • Cleaning laser --> CLM-PRO
  • Air-cooled cleaning laser --> CLM-A

Also check our lasers AVAILABLE AT STOCK

Download a product card
More photos
FAQ

Machinable materials

wood
stone
brick
car parts
rubber
Aluminum and other metals

Approximate net calculation:

100,000.00 zł
The presented price offer is informative. It does not constitute a commercial offer within the meaning of Art. 66 § 1 of the Civil Code, but only an introduction to negotiations.
Prices vary depending on the option selected. Customize the device according to your needs:
An update of this model is underway. Contact us to get a price.

Standard equipment

Modern head
Light construction
Warranty up to 5 years
Instruction PL / EN
Lens set
Nozzle set

Do you need spare parts or accessories for your laser?

You can buy them now in our official online Weni Store!

Product description

The cleaning method used in the CLM series solves problems that were not overcome by traditional methods. The techniques used so far in the cleaning industry use chemistry and mechanical methods. Nowadays, environmental protection regulations are becoming more and more restrictive. Laser cleaning does not abrasion of the cleaned surface contactless and does not cause the material overheating. The device consists of mechanical elements, electrical controls, optical parts and a handle that absorbs shocks.

The CLM-Pulse model with power from 200W-500W is ideal for working with delicate surfaces without damaging their natural coating. The control cabinet is compact and does not take up much space, and the handle is simple and mobile. The models in this series are available in multiple power ratings to meet different customer requirements: 200W, 300W and 500W. The special control system of the main device has a clear interface and intuitive operation. Parameters can be set and adjusted as needed to achieve high performance laser control. The cleaned surface is not damaged in any way thanks to the possibility of selecting different scanning options.

scanning options

Professional optical design, highly damage-resistant lens, high throughput and a large focal length field mirror are the features that distinguish the CLM laser and make it able to meet the requirements of every customer.
* The data on the website is illustrative and may vary depending on the configuration, version and update of manufactured models as well as individual customer requirements. Detailed information is available after contacting us.

Device configuration

Regardless of the choice of IPG/MaxPhotonics/Raycus, our technicians recommend choosing a source with a power reserve (by 20-30%). The higher power of the laser generator proportionally improves the quality and economy of work. What exactly do we get thanks to the higher power of the laser source? Choosing a sufficiently powerful generator results in: -cutting is faster, -we can cut thicker material, -the whole cutting process uses less gas, -edge quality is improved, -gas and dust emissions are reduced.

Choose an option:

Branded components

Click the tab to learn more about the component:

    Technical parameters

    Models available:
    Model
    CLM-Pulse 200W
    CLM-Pulse 300W
    CLM-Pulse 500W
    Generator brand
    MaxPhotonics/other
    MaxPhotonics/other
    MaxPhotonics/other
    Brand
    Weni Solution
    Weni Solution
    Weni Solution
    Laser type
    Fiber laser
    Fiber laser
    Fiber laser
    Laser power
    200W
    300W
    500W
    Cooling system
    Fluid cooling
    Fluid cooling
    Fluid cooling
    Optical fiber length
    5m (modifiable)
    5m (modifiable)
    5m (modifiable)
    Wavelength
    1060~1070 nm
    1060~1070 nm
    1060~1070 nm
    Laser frequency
    1~3000 (KHz)
    1~3000 (KHz)
    1~3000 (KHz)
    Cleaning type
    Contactless
    Contactless
    Contactless
    Device dimensions
    1110×743×1238
    1110×743×1238
    1110×743×1238
    Weight
    200 kg (with water)
    200 kg (with water)
    200 kg (with water)
    Energy consumption
    ≤3000 W
    ≤3400 W
    ≤4500 W
    Power
    240V / 60Hz AC
    240V / 60Hz AC
    240V / 60Hz AC
    Working environment humidity
    <80% RH
    <80% RH
    <80% RH
    Working ambient temperature
    5 - 40 C°
    5 - 40 C°
    5 - 40 C°
    Generated noise
    60 Db A
    60 Db A
    60 Db A
    Air pressure
    0.5 - 0.8 (MPa)
    0.5 - 0.8 (MPa)
    0.5 - 0.8 (MPa)
    Scan speed
    <20000 Hz
    <20000 Hz
    <20000 Hz
    Header weight
    0,76 kg
    0,76 kg
    0,76 kg
    Pulse Width
    50~500 ns
    50~500 ns
    50~500 ns

    Cutting table

    Cutting speed table

    Technical image
