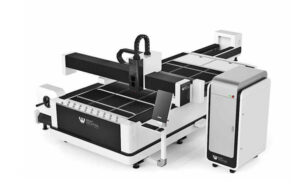

The WS-GM series consists of fiber lasers with a spindle (adapter) enabling cutting pipes and profiles with a length of 3000 or 6000 mm. The power of the laser generator from 1kW Raycus / IPG.
See also similar models to the one being viewed:
We manufacture all our cutting machines to individual customer requirements, such as; work area dimensions, generator power, head type, components and solutions used.
Also check our lasers AVAILABLE AT STOCK
The choice of the model depends on the client's expectations, planned production, prepared budget and many other factors. The models differ in the purpose, size and type of the work table, the possibility of cutting profiles, parameters, etc.
In the case of low-volume productions, small elements and only for the company's production needs, it is best to choose the table size for the most commonly cut sheets, usually these are smaller sizes. In a situation where the manufacturing company accepts orders from the outside, it is recommended to choose a larger table, in the case of a project to cut a large element from one sheet.
Regardless of the choice of IPG / Raycus, our technicians recommend choosing a source with a power reserve (20-30%). The higher power of the laser generator proportionally improves the quality and economy of work.
What exactly do we get thanks to the higher power of the laser source?
Choosing an appropriately strong generator causes that:
- cutting is faster,
-we can cut thicker material,
-the entire cutting process uses less gas,
- edge quality is improved,
- the emission of gases and dust is reduced.
It is especially recommended because increases the precision of control gas pressure and much reduces service time.
Electronic control of the first (oxygen) line is offered as standard with our fiber devices.
Each fiber device of our brand has two gas lines as standard: the first electronically controlled, the second manually controlled (with the possibility of changing to automatic). Cutting small parts or holes without automatic control wastes large amounts of steel and gas, and also makes it difficult to maintain edge quality.
We recommend this option to everyone working with laser technology.
Apply a voltage stabilizer quickly it even eliminates long-term voltage drops thanks to the servos used.
In order for the cutting process to maintain quality, the laser cutter needs a stable mains voltage.
Large devices operating in the same network generate momentary voltage drops that may disrupt the operation of the laser.
Voltage drops can turn off the laser beam and waste material, and in extreme cases, damage the device.
CypNest is special software that works with the CypCut system used on Weni equipment. It is used for advanced Nesting - the placement of cutting elements across the board sheet. Allows you to automate and shorten the planning process. Prevents a lot of material waste.
Unlike the basic version in CypCut 🛈 , which is added on a base basis to the purchased laser, CypNest is an additional paid option and has definitely more advanced features. There is no limit to the number of sheets and cut parts. Deployment is much faster and perfectly optimized.
Among other things, it enables intelligent modification of designs, fast positioning with manual editing, selection of the optimal laser head path. In addition, it allows the generation of detailed reports and analysis. This is a great solution for streamlining production!
TubesT is a professional software for designing spherical parts like tubes and profiles dedicated to the TubePro 🛈 laser cutting system used in our equipment. It allows, among other things. on: drawing and modifying parts, as well as advanced, optimized Nesting and generating full process reports - everything you need to work with a pipe laser. As standard, a free lite version of TubesT, which has limited functionality, is added to the base Weni devices. The full (perpetual) version can be selected as an additional paid option.
The main distinguishing features of the program:
Compressed air for the future?
Nitrogen is used as the shielding gas to cut stainless steel and non-ferrous metals. Since cutting requires high pressure, the gas consumption is also high. This results in high costs and some jobs being rejected as unprofitable. The solution is to use compressed air instead of nitrogen. Our efficient screw compressor (pressure 1.5MPa) makes it possible. Additionally, it is equipped with an air purification system, co provides protection of the optics of the laser head and cutting stability.
It is indispensable for production halls located close to housing estates.
Vapors and dust generated during the operation of a laser or plasma cutter are harmful to people and the environment. All our cutters are equipped with a basic exhaust extraction system. Its job is to extract the fumes from the working area and discharge them outside the building.
On the other hand, the additional exhaust gas filtration and extraction system cleans the air through special filters, eliminating harmful substances.
In addition, energy savings are a huge advantage. Production halls require large outlays for heating. While the standard exhaust extractor can cool any hall in a short time, the filtration system returns warm and clean air back to the room.
Ensure employee safetyespecially in rooms where many machines and people work simultaneously. After crossing the safety barrier, the laser stops working, preventing an accident during work.
The length of the spindle depends on the planned production and dimensions of the most frequently cut profiles and pipes. If you want to execute orders, we suggest choosing a longer 6000 cm spindle, which will be more universal. It is possible to buy a spindle of a different length (3 / 6m) at a later time.
The series of intelligent cutting heads developed for laser equipment is specially designed for the sheet metal processing industry. It features a new optical path design and optimized optical lenses, with easy installation, simple debugging, excellent performance, and dual dust protection. Functions such as perforation detection and process monitoring can effectively improve production efficiency and product performance, as well as meet the stringent cutting quality requirements with high power using air and nitrogen.
Process Monitoring
Real-time monitoring of the cutting process through internal sensors in the cutting head. If unsliced slag is detected, the cutting head automatically retracts and performs a recut, ensuring perfect processing without supervision.
They are produced in Switzerland. The laser heads "RAYTOOLS AG" of the BM series are designed mainly for industrial applications. Designed for medium and high power fiber lasers. In our devices, we most often use the BM 109 1.5KW and BM111 3.3KW models.
A specialized dustproof housing prevents contamination of the collimating lens, which significantly increases its service life, and thus translates into the precision and efficiency of the laser beam. Optimization of the optical design and the water-cooled design enable stable and reliable operation of the laser heads in high-power devices.
The double safety design greatly increases the simplicity of the user when replacing the optics of the laser head, and the risk of contamination of the lens is almost zero. In addition, these heads are equipped with automatic focusing, which significantly improves the operation of the device.
Main features:
Positioning range up to 20mm
Compact, modular design
Highly efficient water cooling system
The ability to cut steel, non-ferrous metals and other highly reflective materials without fear of damaging the head
Various options for protective and focusing lenses
As an expert in energy chain systems, igus® has been supplying all components from a single source since 1964 - including cables. The technology and solutions developed and improved over the years by the German company igus® are unrivaled.
Contrary to the frequently offered spliceable cable options, igus® manufactures chainflex® cables based on the bundled principle. Motionplastic® technology is used in most professional devices on the market - we offer it as standard and use it in each of our devices.
Furthermore, igus® cables are covered by the manufacturer's lifetime warranty and are included in the price - with no hidden costs
What distinguishes chainflex® technologies:
strength and the greatest possible resistance to bending and breaking
elimination of the "corkscrew" effect
reduced installation space and a larger bend radius
adaptation to industrial machines - long life ensures continuity of work
The Schneider Electric range of Lexium servo drives includes AC LXM servo drives for use with BCH2 servo motors.
They are characterized mainly by:
• Reduced startup time
• Increasing profitability
• Improving efficiency
The latest generation of MachineStruxureTM from Schneider Electric is an intuitive machine automation solution with all the features you need to improve your productivity and your bottom line.
MachineStruxure is a complete solution for machine builders with benefits throughout the machine life cycle.
The nesting technology (Nested Based Manufacturing or NBM) significantly shortens and improves the production process, especially in the case of curved cuts.
Thanks to the possibility of positioning whole sheets of plates, it allows for better use of the raw material, i.e. reducing the amount of waste generated. Nesting enables optimal use of the material, and the cutting simulation function will allow for appropriate production planning / Production planning: Before the actual machining, the simulation function will determine the time needed to complete the task.
IPG Photonics is a leading manufacturer of laser generators in the world. Many years of experience guarantee the highest quality and the best parameters of the laser beam.
An extensive distribution network and service facilities guarantee excellent technical support for their products. Warranty and post-warranty repairs are carried out by the laboratory in our factory.
YLR series laser generators available in versions from 500W to 2000W and YLS series from 2000W - 12000W.
Wuhan Raycus Fiber Laser Technologies Co., Ltd. is a leader in the production of laser generators in the Asian market. Wuhan Raycus has an international team of specialists conducting development research, which allows the improvement and expansion of laser generators.
A great advantage of the company is the service and technical support department, and all repairs of devices take place directly at the customer's premises.
Raycus RFL series laser generators available from 500W to 12000W.
CypCut laser cutting control system is a system software set designed for flat laser cutting, including laser cutting, common system functions and laser processing control, most of its functions are used in graphics processing, parameter settings, custom editing of the cutting process, simulation and control of the cutting process.
The CypCut software delivered with the device enables:
The TubePro laser cutting control system is a system software suite designed for spherical laser cutting. Includes laser cutting, common layout function and laser processing control. Most of its functions are cutting parameter settings, custom editing, simulation and control of the cutting process.
The TubePro software provided with the device enables:
In other words, a three-phase voltage regulator (AC) - it was designed to protect and ensure high-quality power supply to Weni Solution laser devices.
The basis for the correct operation of each laser is equal and constant voltage without interference. This significantly improves the quality of the cut and the efficiency of the laser generator.
AirTec is a producer of power pneumatics components included in pneumatic systems, such as air preparation units, lines, connectors, distribution valves and actuators, i.e. actuators, linear and rotary drives and manipulators.
Rail guides in our lasers are provided by three top manufacturers: PMI Linear Motion, HIWIN® and THK Global. They ensure high positioning accuracy, high repeatability and durability.
Linear guides ensure smooth movement of the trolley thanks to the use of rolling elements - balls or rollers. The difference between static and dynamic rolling friction is very small, so that the starting force is only slightly greater than the force supporting the movement. Therefore, stick-slip effects in Weni brand lasers do not occur.
Omron Corporation is a world leader in automation. Provides a variety of products and services in the field of industrial automation and electronic components.
Headquartered in Kyoto, Japan, Omron is headquartered in Kyoto, Singapore, Hong Kong, Amsterdam and Chicago and employs more than 37,000 people in 36 countries.
The advanced cooling unit CW-6200 is a device designed to ensure the optimal operating temperature of both the generator and the laser head. Advanced automatics used in our units allow precise control of the coolant temperature.
The built-in alarm system informs the user about exceeding the permissible operating temperatures and about disturbances in the cooling liquid flow.
Material:
Power:
Type:
„Parameters for the selected option will be added soon”
„The given parameters are illustrative and constitute an example of the selection of power to the thickness of the materials. They may differ from the actual parameters due to the processed material”
Note: For cutting highly reflective materials such as copper, brass, gold and silver, we recommend choosing the IPG laser generator (in the case of MAX PHOTONICS and RAYCUS, there is a high risk of failure/damage to the above-mentioned generators).
