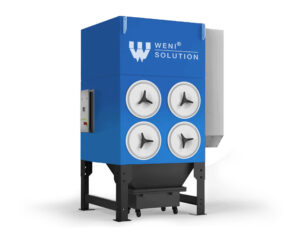

Filtration and exhaust system

Model WS-TK

Advanced filtration and exhaust system WS-TK, purifies the air through special filters eliminating harmful substances.

The device is available in 3 variants.

Fumes and dust generated during the operation of laser or plasma cutter are harmful to people and the environment. All our cutters are equipped with a basic exhaust extraction system. Its work is to extract the fumes from the working field and discharge them outside the building.

See our other equipment:

We manufacture all of our equipment according to individual customer requirements, such as: working table dimensions, components used and other parameters.

Also check out our AVAILABLE ON HAND lasers and other peripheral devices

Machinable materials

Production lines
Laser devices
painting
Pharmaceutical industry
Chemical industry
Many others

Approximate net calculation:

100,000.00 zł
The presented price offer is informative. It does not constitute a commercial offer within the meaning of Art. 66 § 1 of the Civil Code, but only an introduction to negotiations.
Prices vary depending on the option selected. Customize the device according to your needs:
An update of this model is underway. Contact us to get a price.

Standard equipment

Warranty up to 5 years
Manual in PL/EN language
Post-warranty support
Factory own service and support

Do you need spare parts or accessories for your laser?

You can buy them now in our official online Weni Store!

Product description

A filtration and fume extraction system is essential for production halls located close to settlements.

The dust collector is used to collect dust and airborne particles. It can be used both to solve the problem of air pollution and as part of the production process, providing efficient, continuous dust collection online. A key part of the dust collector is the filter element, which ensures that clean air is returned to the factory environment.

During operation, contaminated air enters the dust collector through the inlet and passes through the filter element, on whose surface dust settles. The filtered air flows through the interior of the filter into the clean air chamber and is discharged through the outlet back into the environment. To ensure optimum performance of the dust collector, the filter elements must be cleaned regularly and automatically. During this process, a timer activates an electro-valve that actuates the corresponding diaphragm valve. It sends a pulse of compressed air through the filter, which removes accumulated dust from its outer surface. The dust falls into the collection system through a hopper.

In addition, a huge advantage is energy savings. Production halls require large amounts of heating. While a standard exhaust hood can cool any hall in a short period of time, the filtration system puts warm and clean air back into the room.
* The data on the website is illustrative and may vary depending on the configuration, version and update of manufactured models as well as individual customer requirements. Detailed information is available after contacting us.

Device configuration

Models differ in the number of filters and the size of the device, among other things. The choice of model depends on the customer's expectations, planned production, prepared budget and many other factors.

Choose an option:

Choose an option:

Branded components

Click the tab to learn more about the component:

    Technical parameters

    Models available:
    Model
    WS-TK4
    WS-TK6
    WS-TK8
    Power supply:
    3 phase 400V/ 50Hz
    3 phase 400V/ 50Hz
    3 phase 400V/ 50Hz
    Fan motor:
    5,5 kW
    7,5 kW
    11 kW
    Performance:
    3000-4500 m3/h
    6000 m3/h
    9000 m3/h
    Emission concentration (mg/M):
    <20
    <20
    <20
    Number of filter cartridges:
    4
    6
    8
    Filter cartridge material:
    Trudnopalny, F9
    Trudnopalny, F9
    Trudnopalny, F9
    Air pressure:
    3000
    3600
    5000
    Filtering area:
    82 m2
    120 m2
    160 m2
    Dust bin capacity:
    45L
    50L
    90L
    Filtration efficiency:
    99,99%
    99,99%
    99,99%
    Dimensions:
    1360x1320x1353 (mm)
    1550x1395x2653 (mm)
    2230x1420x2553 (mm)
    Weigh
    600 kg
    800 kg
    1000 kg

    Cutting table

    Cutting speed table

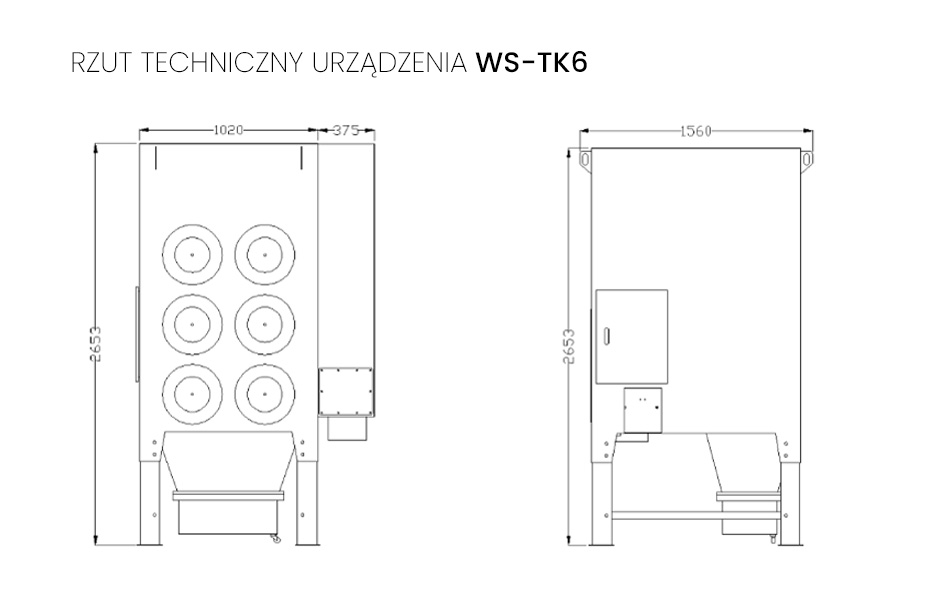

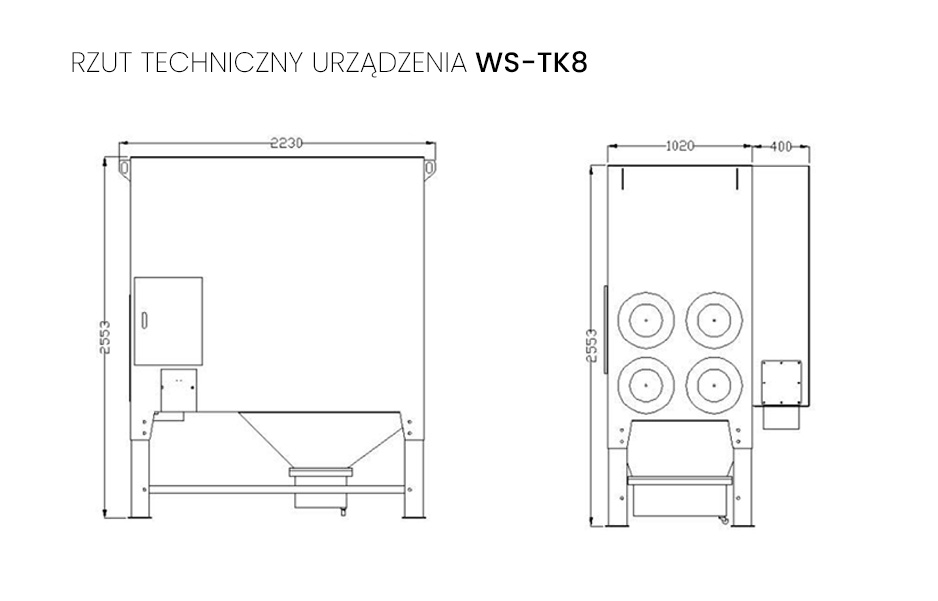

    Technical image

    Select a workspace

    WS-TK4
    WS-TK6
    WS-TK8

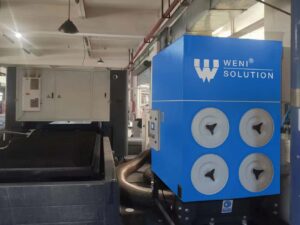

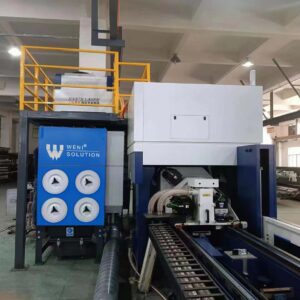

    Application
